E Connect Pro

E Connect Pro

E-CONNECT Pro is a characteristic-rich and cost proficient cordless end motor. The contra angle can be 340 degrees rotated making it simple to watch the LCD in treatment by rotating the contra-angle.

Quick and simple programmable modes for torque, speed, continuous rotation/ reciprocation modes.

�

Additional E-CONNECT Pro functions :

• Continuous forward rotation.
• Continuous reverse rotation.
• Reciprocation Mode for reverse cut files.
• Torque reversal.

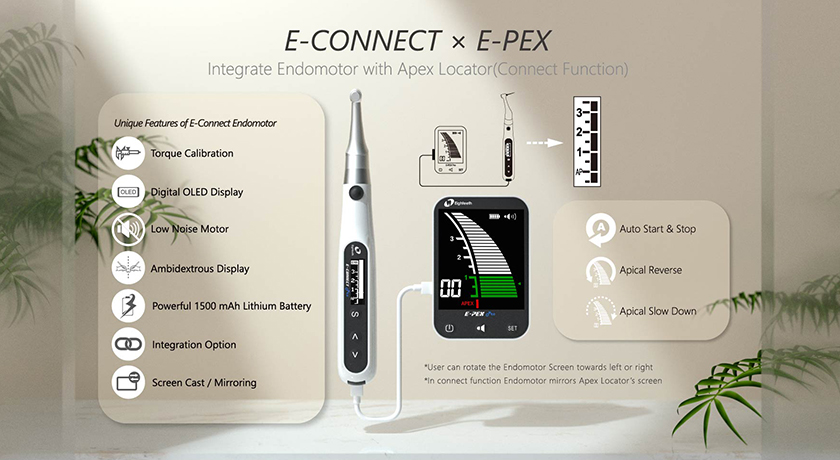

�Functions activated when integrated with E-PEX Pro (apex locator) :

• Auto Start-stop- Motor starts moving when the file enters the canal and stops when withdrawn.
• Apical Reverse- When the file reaches pre-set apical turn around point, user can classify whether the file starts moving in reverse course.
• Apical Slow Down- To preserve the cemento dental junction and avoid file-separation, speed of motor slows down when the file is in close proximity to apical region.
• Apical Torque Reduction- In addition to apical slow down, torque decrease at apical third prevents probability of file separation.

FEATURES :-

• Continuous Mode :�6 Memory Programs to set rotation speed, torque and direction

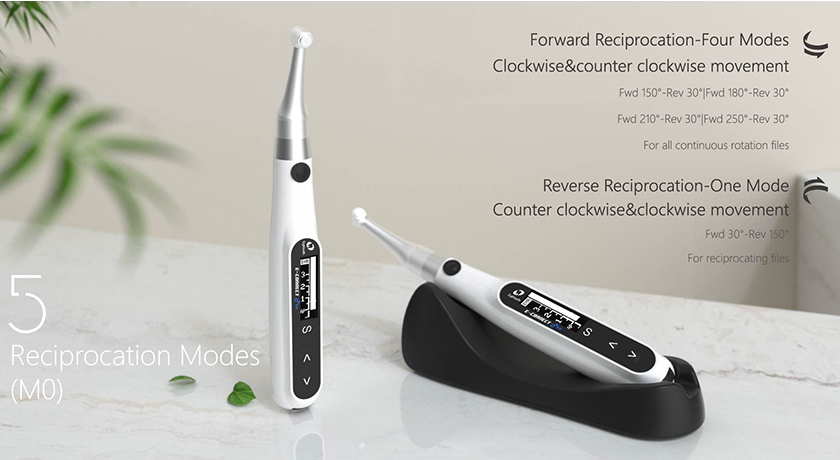

• Reciprocation Mode :�5 Modes with 4 forward and 1 reverse reciprocation.
• Auto Torque Reverse :�Reduces the risk of instrument separation inside the canal.�
• 340 degree Adjustable Head :�Easy working in all teeth.
• Miniature Head :�Provides excellent visibility while working.
• Ambidextrous :�Adaptable for both left and right hand operations.
• Torque Calibration :�In-built in the end motor.

�TECHNICAL INFORMATION :-

• Model Number :�E-CONNECT Pro
• Rotational Speed Range :�120-650 RPM
• values :�120, 150, 200, 250, 300, 350, 400, 450, 500, 550, 600, 650
• Torque Range :�0.5 �€“ 4.0 Ncm
• Values :�0.5,0.8,1.0,1.2,1.5,2.0,2.5,3.0,3.5,4.0
• Adaptor Working Voltage :�AC 100-240v, 50/60 Hz
• Battery Capacity :�1600mAh (can update to 2000 mAh)
• �

CONTENTS :-

• E-CONNECT Pro Handpiece.
• Data Transfer Cable.
• Contra-angle.
• Adaptor.
